Technical Specifications

At acousti-art, we don’t just print beautiful visuals—we engineer better-sounding spaces. Our panels are built from three distinct layers, combining architectural-grade materials with advanced sound-dampening technology.

Here is exactly what goes into every acousti-art panel.

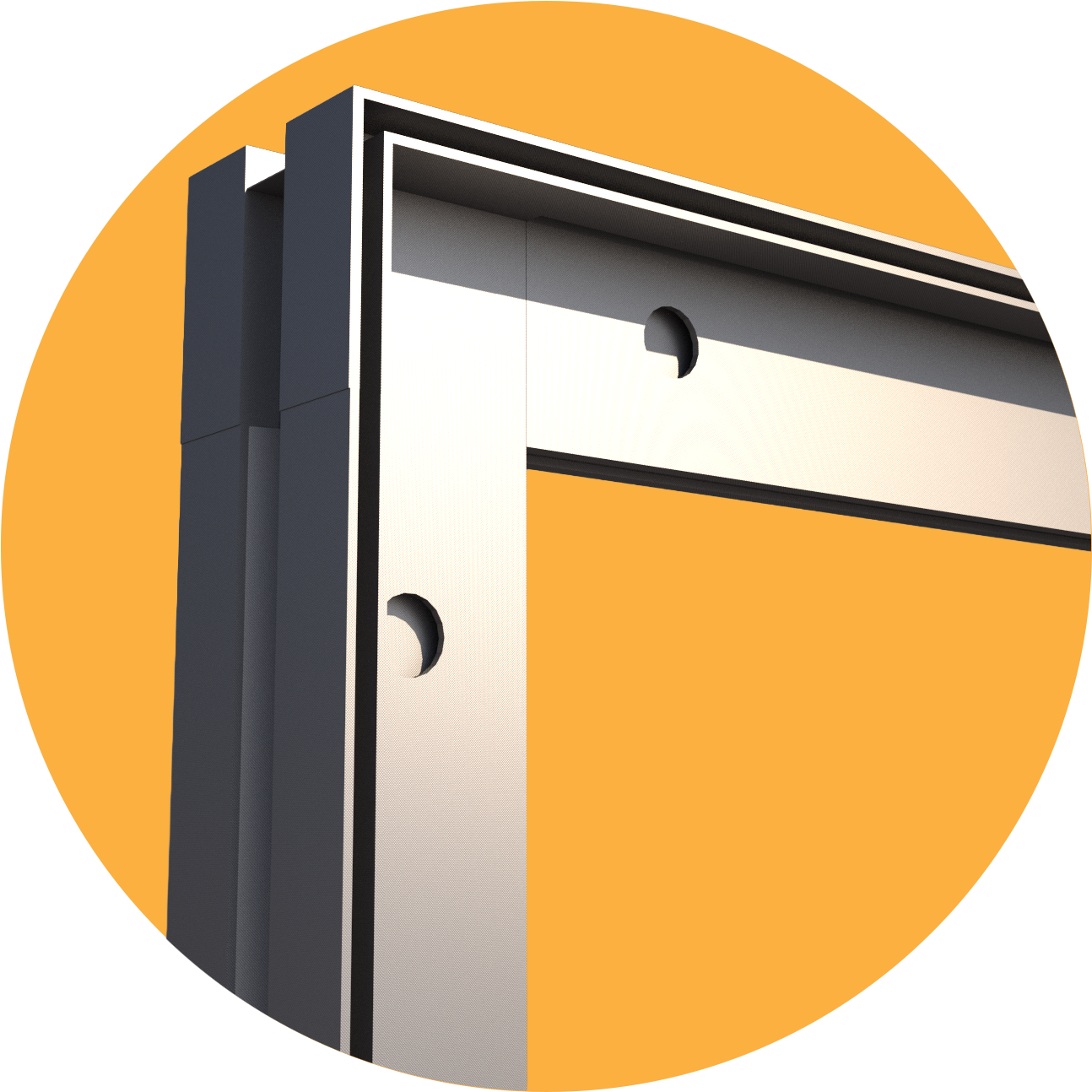

The Frame: 2” Extruded Aluminum

The foundation of our panels is a sleek, lightweight, and highly durable aluminum frame designed to sit flush against your wall.

• Profile Depth: 2 inches

• Material: Architectural-grade extruded aluminum

• Durability: Rigid construction that prevents bowing or warping, even on our largest panoramic formats

• Weight: Exceptionally lightweight for easy handling and secure wall mounting

The Visuals: Premium SEG Fabric Graphics

We use SEG (Silicone Edge Graphic) technology. A thin silicone band is sewn directly into the edge of the fabric, which tucks seamlessly into the perimeter of the aluminum frame.

• Tensioned Perfection: The SEG system stretches the fabric drum-tight across the frame, eliminating wrinkles, sagging, and glare.

• Acoustically Transparent: The fabric is woven to allow sound waves to pass directly through the art and into the dampening core, rather than bouncing off the surface.

• Vibrant & Colorfast: High-resolution dye-sublimation printing ensures deep blacks, vivid colors, and crisp details.

• Easily Interchangeable: Redecorating? Simply pull the fabric tag to remove the current art and press a new SEG graphic into the frame channel in seconds.

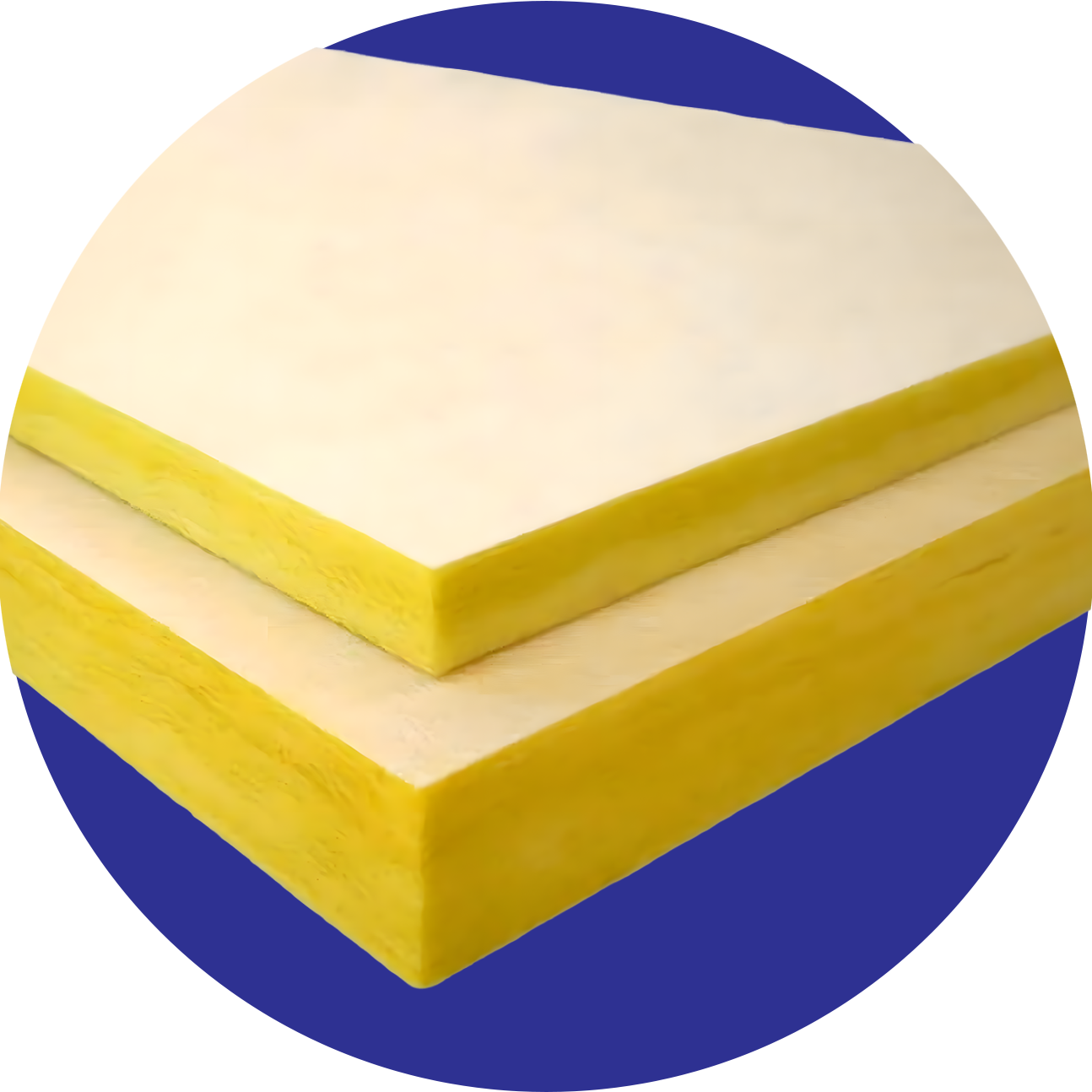

The Core: 1” Sound-Dampening Foam

Hidden directly behind the fabric is the engine of our acoustic performance: a high-density acoustic core designed to absorb ambient noise and eliminate echo.

• Thickness: 1-inch acoustic foam core

• Performance: Specifically engineered to trap mid-to-high frequency sound waves (like voices, clattering dishes, and sharp echoes).

• Air Gap Advantage: Because the frame is 2” deep and the foam is 1” thick, a 1-inch air gap is created behind the foam. This air cavity naturally traps lower frequencies, significantly boosting the overall sound absorption of the panel.

• Application: Ideal for noisy restaurants, echoing conference rooms, home theaters, cafeterias, and any crowded areas.

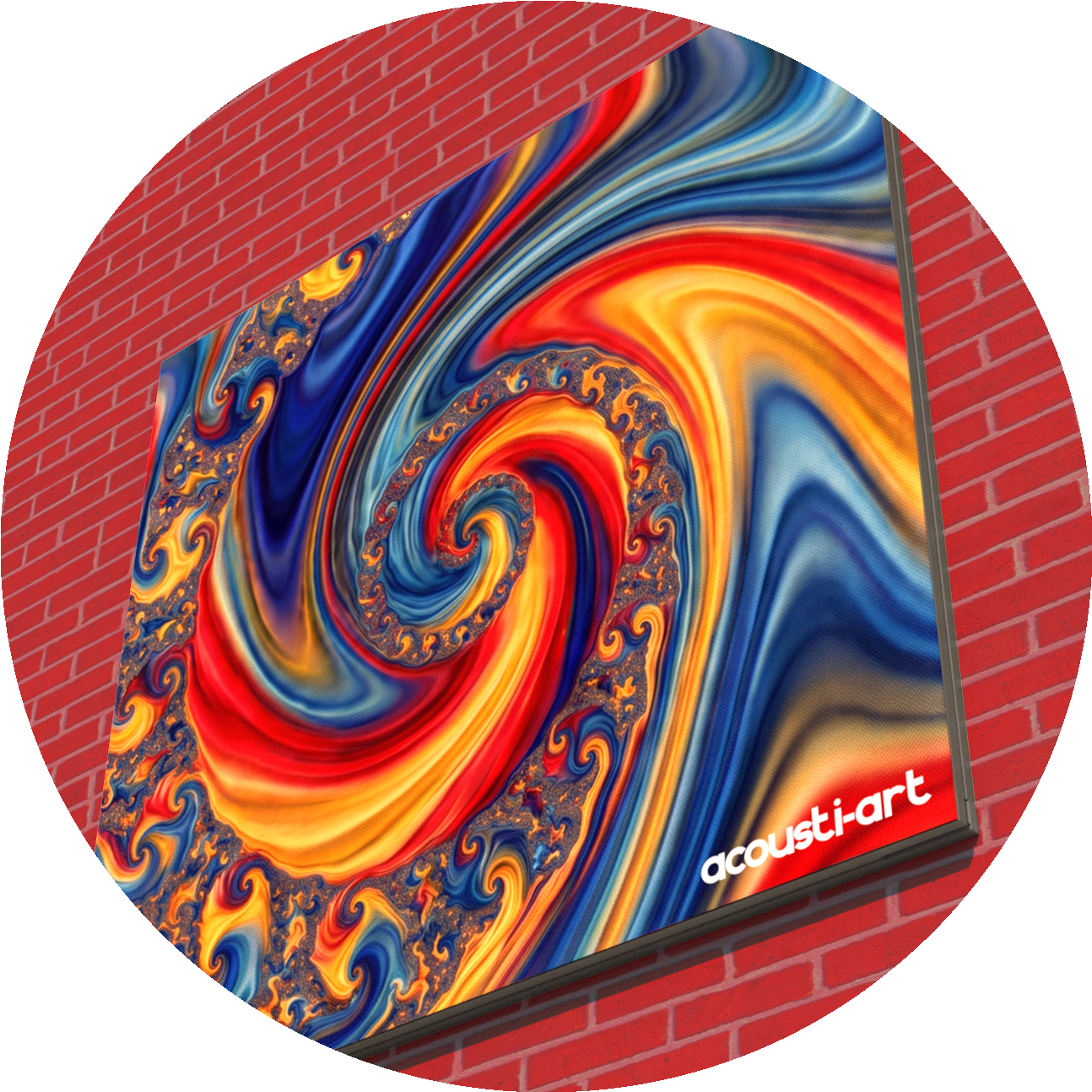

Installation & Mounting

Hanging an acousti-art panel is as straightforward as hanging a heavy mirror or large painting.

• Mounting Hardware: Includes a heavy-duty wall bracket (cleat system) that securely locks the aluminum frame flush to the wall.

• Wall Impact: Requires minimal drilling and hardware, preserving the integrity of your drywall.

• Orientation: Custom frames can be manufactured for both portrait and landscape orientations.

Have a custom project in mind?

Contact our team for custom dimensions, bulk orders, or detailed acoustic performance reports.
